Install Qodo Agentic Mode

This document provides step-by-step instructions for On Prem customers to install and configure Agentic Mode in their backend infrastructure.

Learn more about Agentic Mode.

Administrator-Only Configuration

The installation and configuration process in this manual should be performed by system administrators only.

Requirements

Before proceeding with the installation, ensure the following prerequisites are met:

Database

Postgres v17+ must be deployed. Managed cloud solutions like AWS RDS or GCP CloudSQL are recommended.

The database should follow a few minimum specifications:

• 2 vCPU

• 16 GB of memory

• 50 GB of disk space

• Accessible from the EC2 instance running the Qodo stack

If you’re using a public cloud, managed solutions like GCP CloudSQL and AWS RDS are recommended.

Qodo stack version

Ensure Qodo Stack version is at least 0.1.300.

Helm installation

Ensure Helm is installed for managing Kubernetes deployments.

Embedded Cluster (Optional): If Kubernetes is not available, installation can be performed using Replicated (web UI-based deployment).

Configuration Details for Helm users

Environment Variables

• The primary configuration file is /copilot_proxy/settings_prod/.secrets.toml.

• The file is a Kubernetes secret that must be appended to.

Required Installations

• In addition to setting values, users must enable cronjobs and jobs in the Helm chart.

• The following command ensures all necessary jobs are scheduled:

kubectl apply -f cronjobs.yaml

Installation steps for Helm users

1. Database Setup

Deploy a Postgres v17+ database and configure it with the required credentials.

Example Configuration:

[agenticdb]
username=<your-username>
password=<your-password>
host=<your-db-host>
port=5432
db_name="agentic"

• If using a public cloud, managed solutions like AWS RDS, GCP CloudSQL or Azure SQL are recommended.

2. Update Helm Values

Modify the Helm values file to include the necessary configurations for Agentic Mode:

jobs:
  db-migration:
    annotations:
      "helm.sh/hook": pre-install,pre-upgrade
      "helm.sh/hook-delete-policy": before-hook-creation,hook-succeeded
    command:
      - python
      - -m
      - alembic
      - upgrade
      - head
  db-partition-create-init:
    backoffLimit: 10
    activeDeadlineSeconds: 3600
    annotations:
      helm.sh/hook: post-install,post-upgrade
      helm.sh/hook-weight: "-4"
      helm.sh/hook-delete-policy: hook-succeeded
    command:
      - python
      - /copilot_proxy/db/partitoning/partition_script.py
cronJobs:
  db-partition-delete:
    backoffLimit: 10
    activeDeadlineSeconds: 3600
    concurrencyPolicy: Forbid
    schedule: "0 1 * * *"
    command:
      - /bin/sh
      - -c
      - "PYTHONPATH=/copilot_proxy:/ragger/indexing:/ python /copilot_proxy/db/partitoning/cleanup_script.py"
  db-partition-create:
    concurrencyPolicy: Forbid
    schedule: "0 1 * * *"
    command:
      - python
      - /copilot_proxy/db/partitoning/partition_script.py

3. Run Helm Upgrade

Apply the updated Helm values by running:

helm upgrade qodo-gen oci://artifacts-self-hosted.qodo.ai/codium-stack/stable/module -f ./values.yaml

This will run database migrations and create the necessary partitions.

4. Update Secrets

Modify the Kubernetes secret file /copilot_proxy/settings_prod/.secrets.toml to include:

[agenticdb] # Agentic DB details
username=$USERNAME
password=$PWD
host=$HOST
port="5432"
db_name="agentic"

[app] # Feature flags
agentic_support = true    # Enable Agentic mode
lean_agent_enabled = true # Enable lean agent for smoother, more flexible development workflows.
custom_mcp_enabled = true # Enable Agentic Tools (MCPs)
apply_flow_on = true
test_flow_on = true

/copilot_proxy/settings/settings.toml (default settings in the image)
[app]
apply_flow_on = false
test_flow_on = false
agentic_support = false
custom_mcp_enabled = false
langgraph_checkpointer="postgres"

Ensure the pods pick up the new version of the secret.

You can also pass over these secrets as environemt variables:

APP.AGENTIC_SUPPORT=true
APP.LEAN_AGENT_ENABLED=true

Configuration Sections Explained

• [app]: Defines feature flags.

• [agenticdb]: Contains Agentic DB details.

5. Verify Agentic Mode

Restart your IDE and verify that Agentic Mode is enabled.

Installation steps for Embedded Cluster users

For customers without Kubernetes, use Replicated to install Agentic Mode on a virtual machine.

Steps

1. Enable the Agentic Mode license flag: Notify the Qodo team to enable the license flag.

2. Sync license: Once confirmed, sync the license in the Admin web UI.

3. In the Admin web UI, navigate to the Config tab.

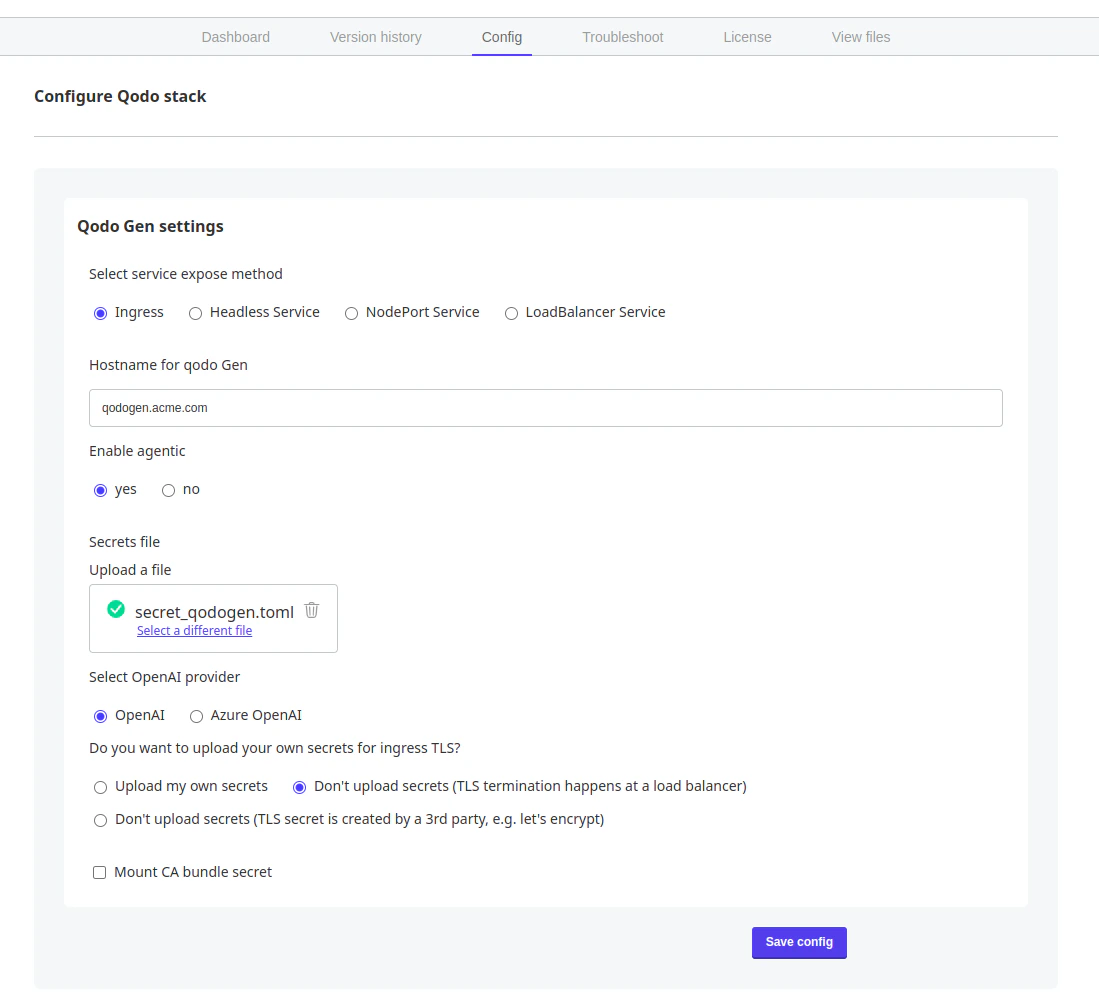

1. Enable Agentic Mode within Qodo Gen: In the Qodo Gen Settings section, enable Agentic Mode.

2. Update secret: Append to the end of Qodo Gen secret toml file:

[agenticdb]
username=<your-username>
password=<your-password>
host=<your-db-host>
port=5432
db_name="agentic"

1. Ensure the configuration was updated: ensure the popup The config for Qodo stack has been updated. appears, then click Go to updated version.

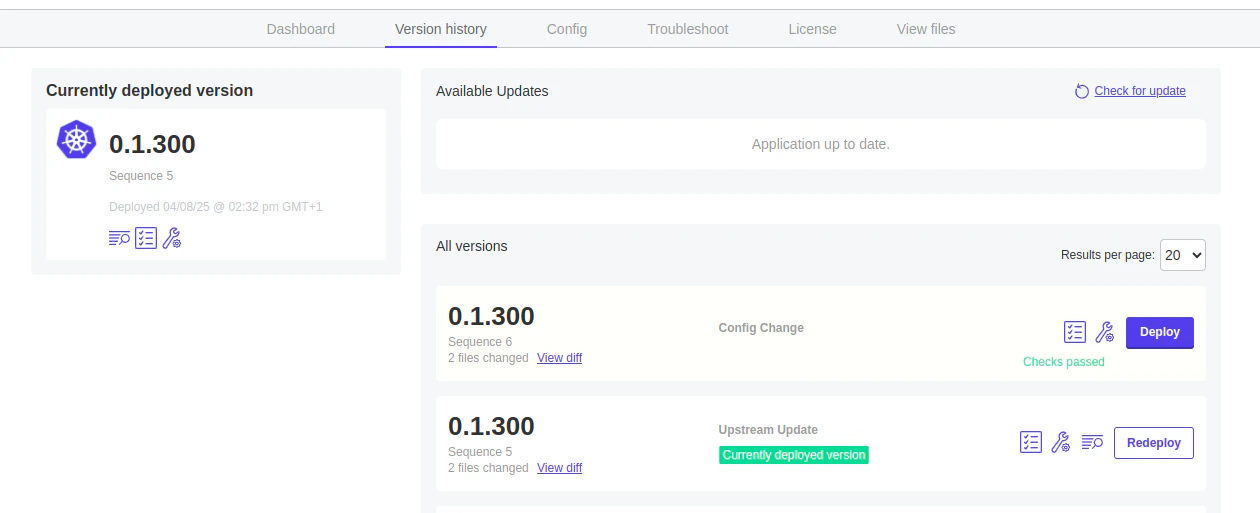

2. Deploy the updated configuration: in the Version history tab you’ve been forwarded to, find the Config change entry in the top of the versions list. Click Deploy.

1. Wait for a pod to start: Changing the secret causes the container restart. Wait until it fully starts up.

2. Restart and start using Agentic Mode: Restart your IDE. You should be able to use Agentic Mode in your IDE.

For further details, refer to the official documentation.
